Power Dividers/Combiners

Wilkinson Microwave Power Dividers/ Power Combiners

Features

    • Low Insertion Loss
    • High Isolation between Output Ports
    • Excellent Amplitude Balance and Phase Balance
    • Wide Band Frequency Coverage
    • Compact and Ruggedized Packaging

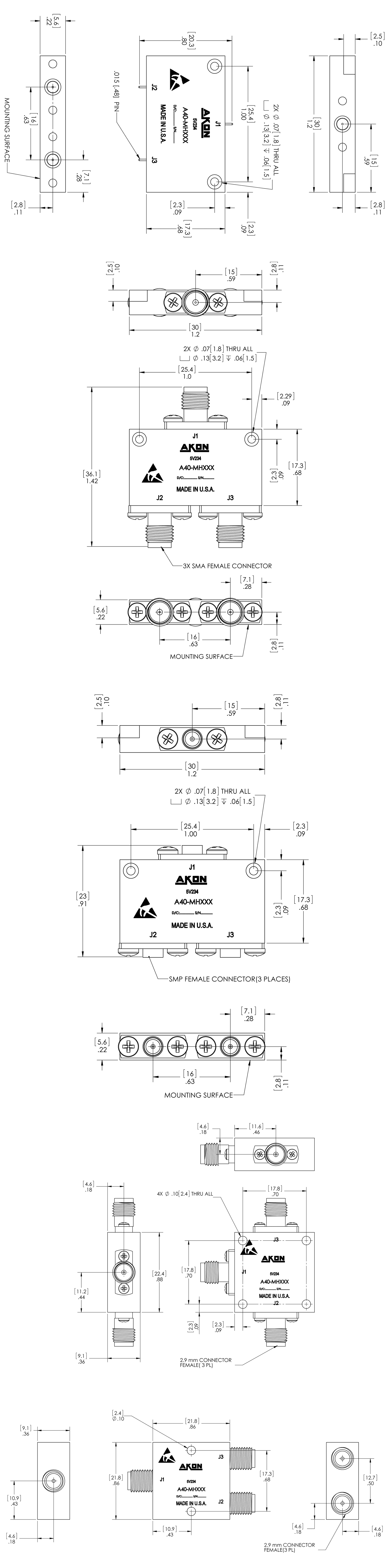

    • Package Options: Drop-In, SMA/2.9mm & SMP

Description

AKON’s product line of RF & Microwave Power Dividers/Power Combiners operate over a frequency range of 2 - 40 GHz.  AKON’s Wilkinson microwave power dividers are made on thin film substrates with deposited terminations that provides excellent VSWR performance on all ports.  This design construction offers superior amplitude  and Phase Balance between output ports.

AKON products are designed to withstand the demanding environments of Military, Space and Industrial applications. Our compact and ruggedized products are designed to handle stringent mechanical shock/vibrations, temperature cycling, altitude and temperature extremes.

AKON offers an off-the-shelf screening option called it’s “H“ series, per Mil-STD-883 level B that is available on all of its RF & Microwave Components.  For custom electrical, mechanical, and screening options, please contact AKON Sales: sales@akoninc.com (or) 408-432-8039.

SPECIFICATIONS
Model Number Frequency Range(GHz) Insertion Loss (dB) Frequency Flatness(dB) Output Isolation P to P (dB) VSWR (max) Amplitude Balance (dB) Phase Balance (º) Max Input Power* (dBm) Pkg. EAR99/ ITAR Select Product
PCS-2060 2-6 1.0 +/- 0.3 15 1.8:1 +/- 0.2 +/- 4 +30 SMA EAR99
A40-MH002 2-6 1.0 +/- 0.3 15 1.8:1 +/- 0.2 +/- 4 +30 Drop-In EAR99
A40-MH003 2-6 1.0 +/- 0.3 15 1.8:1 +/- 0.2 +/- 4 +30 SMA EAR99
A40-MH012 18-26 1.8 +/- 1.0 14 2.0:1 +/- 0.8 +/- 10 +30 2.92mm-S EAR99
A40-MH013 26-40 2.2 +/- 1.0 14 2.0:1 +/- 0.8 +/- 10 +30 2.92mm-F EAR99
A40-MH014 26-40 2.2 +/- 1.0 14 2.0:1 +/- 0.8 +/- 10 +30 2.92mm-S EAR99
A40-MH015 18-40 2.2 +/- 1.0 14 2.0:1 +/- 0.8 +/- 10 +30 2.92mm-F EAR99
A40-MH016 18-40 2.2 +/- 1.0 14 2.0:1 +/- 0.8 +/- 10 +30 2.92mm-S EAR99
A40-MH004 2-6 1.0 +/- 0.3 15 1.8:1 +/- 0.2 +/- 4 +30 SMP EAR99
PCS-6018 6-18 1.2 +/- 0.5 15 1.8:1 +/- 0.3 +/- 7 +30 SMA EAR99
A40-MH005 6-18 1.2 +/- 0.5 15 1.8:1 +/- 0.3 +/- 7 +30 Drop-In EAR99
A40-MH006 6-18 1.2 +/- 0.5 15 1.8:1 +/- 0.3 +/- 7 +30 SMA EAR99
A40-MH007 6-18 1.2 +/- 0.5 15 1.8:1 +/- 0.3 +/- 7 +30 SMP EAR99
PCS-2018 2-18 1.8 +/- 1.0 15 2.0:1 +/- 0.4 +/- 10 +30 SMA EAR99
A40-MH008 2-18 1.8 +/- 1.0 15 2.0:1 +/- 0.4 +/- 10 +30 Drop-In EAR99
A40-MH009 2-18 1.8 +/- 1.0 15 2.0:1 +/- 0.4 +/- 10 +30 SMA EAR99
A40-MH010 2-18 1.8 +/- 1.0 15 2.0:1 +/- 0.4 +/- 10 +30 SMP EAR99
A40-MH011 18-26 1.8 +/- 1.0 14 2.0:1 +/- 0.8 +/- 10 +30 2.92mm-F EAR99
Note: You can select different models and submit inquiry or custom quote request with help of different options available at bottom of page.
