Products

0.4 - 18.0 GHz Pre-Channelized Single Conversion, IF B.W 2.0-6.0 GHz Miniature Tuner

Features

    • TYPE 2 TUNER
    • 0.4 - 18.0 GHz INPUT FREQUENCY RANGE
    • PRE-FILTERED TO AVOID HARMONICS
    • 2.0 - 6.0 GHz OUTPUT
    • 21 dB TOTAL GAIN
    • OUTPUT AMPLIFIER WITH +20 dBm OUTPUT POWER
    • SIZE: 6.8” x 5.1” x 1.0”

Microwave Assembly 1.0 - 18.0 GHz

Features

    • TYPE 1 TUNER
    • 65 dB INSTANTANEOUS DYNAMIC RANGE
    • -65 dBm CHANNEL SENSITIVITY
    • PRECONVERSION CHANNELS: 8 EACH;
    • -65 dBc; 15% FROM BAND EDGES
    • -60 dB CHANNEL TO CHANNEL ISOLATION
    • BUILT-IN 65 dB LOG VIDEO OUT @ 1.0GHz

Wideband Microwave Tuner
1 - 18.0 GHz

Features

    • TYPE 1 TUNER
    • 1 - 18 GHz INPUT FREQUENCY
    • 65 dB INPUT DYNAMIC RANGE
    • 4 INPUT CHANNELS
    • 77.6 WATTS POWER CONSUMPTION
    • SIZE: 9.2” x 5.9” x 1.7”
    • WEIGHT 3.0 KG

Tuner/Downconverter
2 - 6 GHz to 1 - 2 GHz Baseband

Features

    • TYPE 1 TUNER
    • 2.0 - 6.0 GHz INPUT FREQUENCY
    • 1.0 - 2.0 GHz IF OUTPUT
    • 25 dB IF OUT NET GAIN
    • HERMETIC PACKAGE OPTIONS AVAILABLE
    • EXCELLENT TEMPERATURE STABILITY
    • SIZE: 4.98” x 3.42” x 0.89”



Tuner/Downconverter
6.0 - 18.0 GHz to 2.0 - 6.0 GHz Baseband

Features

    • TYPE 1 TUNER
    • 6.0 - 18.0 GHz INPUT FREQUENCY
    • 2.0 - 6.0 GHz IF OUTPUT
    • -10 dBm LO INPUT
    • 200 NS SWITCHING SPEED
    • 6.0 - 18.0 GHz AUXILIARY OUTPUT
    • -30 dBc INBAND SPURIOUS

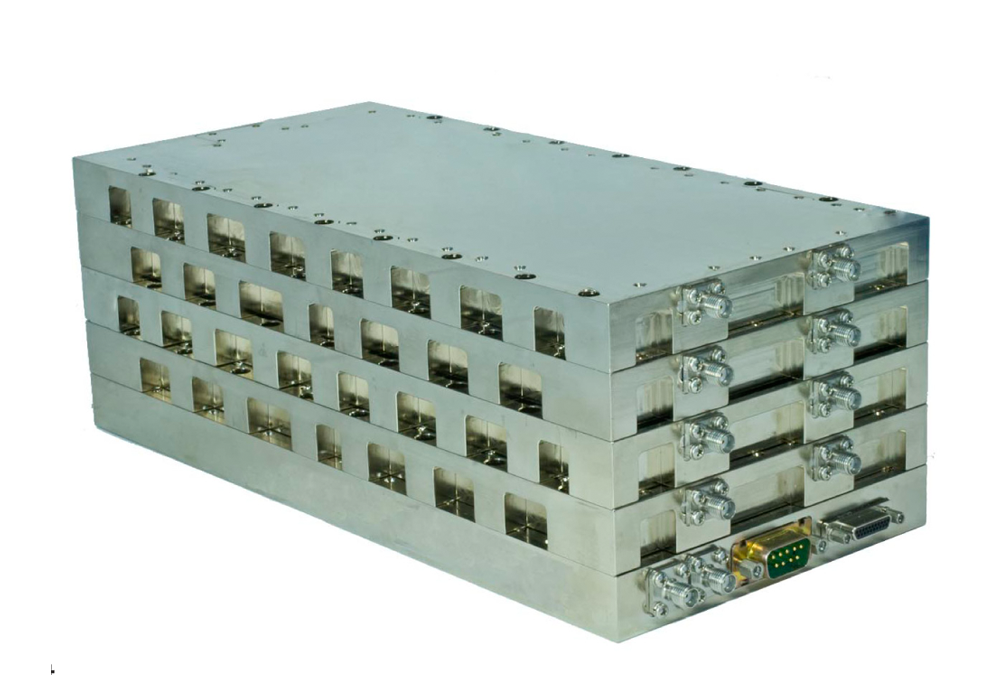

Four Channel 0.5 - 18.0 GHz ESM System Converter

Features

    • 0.5 - 18.0 GHz FREQUENCY RANGE
    • FOUR IF OUTPUTS
    • 1.0 GHz IF CENTER FREQUENCY
    • 100 ns SWITCHING TIME
    • EXTERNAL VARIABLE LO
    • BUILT-IN LO1 PROCESSING
    • BUILT-IN LO2
    • INTEGRATED DC-DC CONVERTER/ POWER SUPPLY
    • LO PRESENCE MONITOR
    • CHANNEL TEMPERATURE MONITORING
    • MODULAR DESIGN

0.8 - 20.0 GHz Pre-Channelized Dual Conversion Selectable IF Bandwidth Miniature Tuner

Features

    • TYPE 1 TUNER
    • 70 dB DYNAMIC RANGE
    • 8 PRECONVERSION CHANNELS
    • 50 dB SPURIOUS FREE RANGE
    • 5 dB CONVERSION GAIN
    • 60 dB CHANNEL TO CHANNEL ISOLATION
    • 1 GHz IF OUTPUT
    • +/- 25MHz, +/- 125MHz, +/- 250MHz INSTANTANEOUS BW

Customer Program

JPL - MIRO (Complex Integrated Microwave Assembly)
JPL - MLS (complex Converter Assembly)
AEG - Germany FL-1800 (Electronic Counter Measure)
CSIST - Shipboard Radar Update
Raytheon - SLQ - 32
BAE/Sanders - USM - 406C (Test Set)
BAE/Sanders - USM - 464 (Test Set)
US Navy - SAR - Synthetic Aperture Radar TR Modules
NAVSEA/Envisioneering - SEAPORT-e Program (Tuners)
Lockheed Martin - AEGIS
SEARAM - Rolling Airframe Missile
Brazilian Navy
DSTO Australia
Anaren - Canadian F18
Ford - HARM Missile Seeker
ITT - ASPJ (Airborne Self Protect Jammer) IDECM (Integrated Digital Electronic Counter)
Japan - FSX, Several RWR (Radar Warning Receiver)
BAE/Loral - ALR - 56C (F15 Fighter) RWR
BAE/Loral - ALR - 56M (F16 Fighter) RWR
BAE/Loral - ALQ - 131 (Pod Mounted Jammer)
Turkish F-16 - Front End Converters SPEWS II
DRS - Euro Fighter Test Set
BAE/Loral - ALR - 56V - F15 (RWR Update)
Northrop Grumman - JSTARS
Northrop Grumman - ALQ - 188 (Electronic Attack Training Pod)
Raytheon - ALQ - 142 (LAMPS Helicopter)
Electronica (Italy)
Government of India - Aircraft Radar
DSTO (Australia)
