5G AND MILLIMETER BAND PRODUCTS 18 - 50 GHz

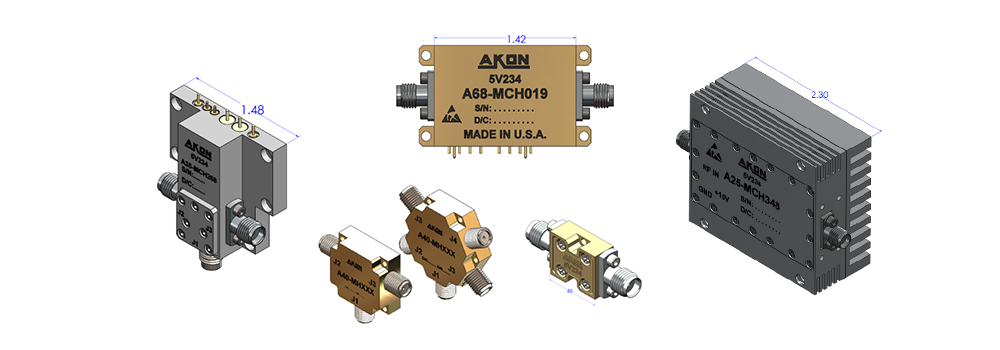

CURRENT PRODUCTS

  • AMPLIFIERS – LNA and Medium Power
  • MINATURE POWER DIVIDERS
  • SWITCHES – SPST through SP8T
  • MINATURE SUBSTRATE FILTERS – BPF and LPF
  • SWITCHED FILTER BANK IMAs
  • FREQUENCY MULTIPLIERS
  • LOW PHASE NOISE RF SOURCES
  • BLOCK UP and DOWN CONVERTERS

AMPLIFIERS

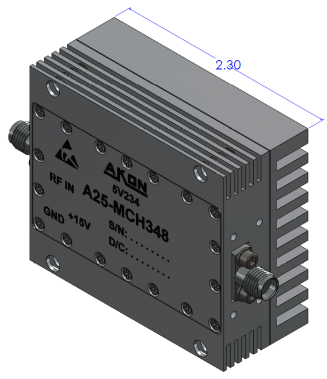

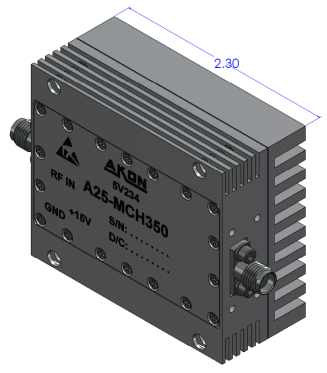

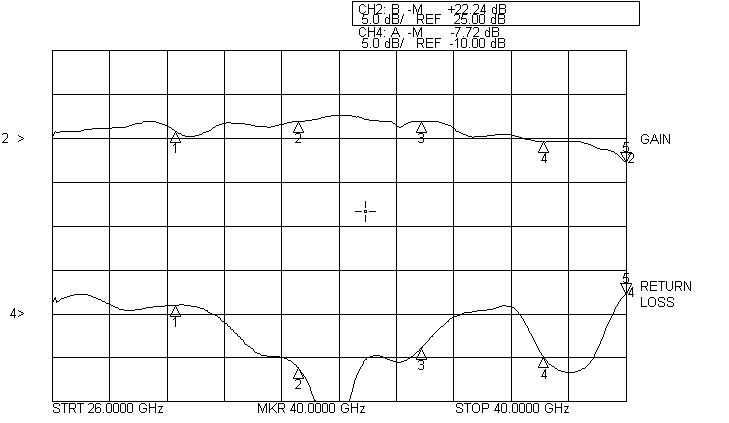

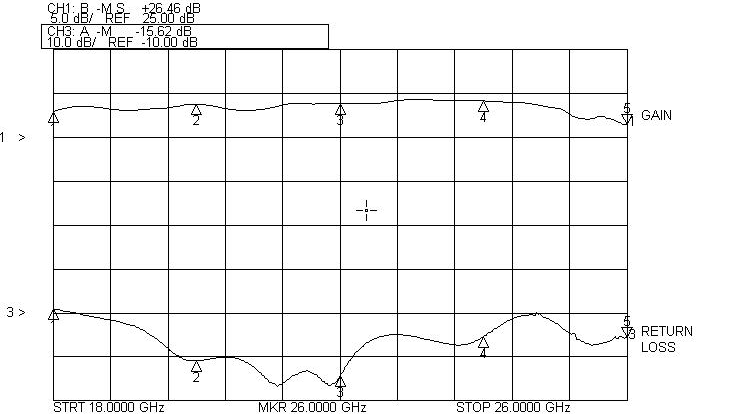

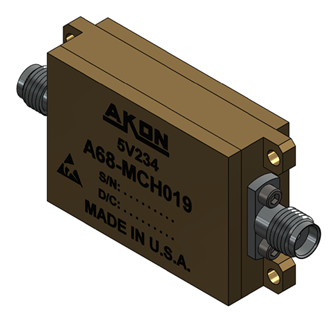

Akon millimeter amplifiers are available banded in the popular 18 – 26.5 GHz, 26.5 – 40 GHz bands, as well as broadband 18 – 40 GHz and 33 – 50 GHz.  LNA noise figures are as low as 3.5 to 4.5 dB at 18 GHz and 4.5 to 5.5 dB at 40 GHz to 6.5 dB at 50 GHz.  Medium Power amplifiers can provide P-1 dB outputs from +28 dBm at 18 GHz to +23 dBm at 40 GHz and +19 dBm at 50 GHz.  Performance of actual units shown on the right.

EXAMPLES OF ACHIEVED PERFORMANCE

18 – 26 GHz

26 – 40 GHz

Miniature Power Dividers

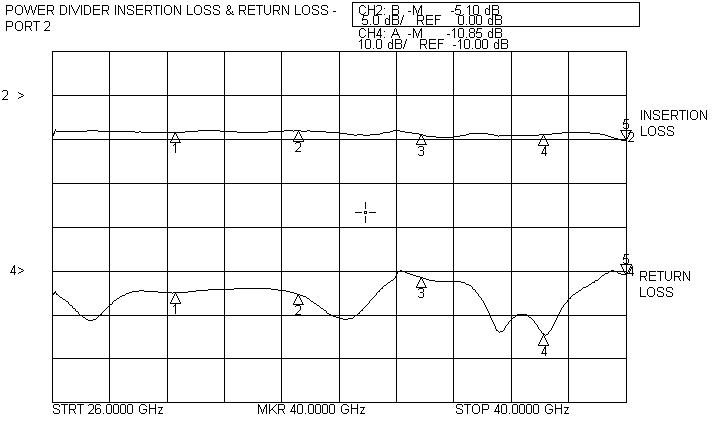

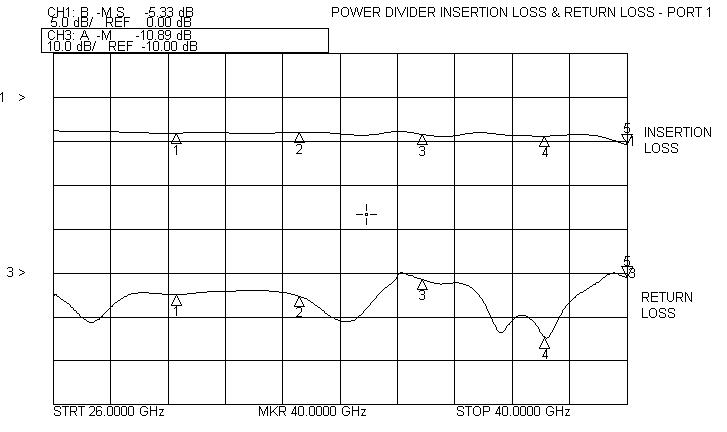

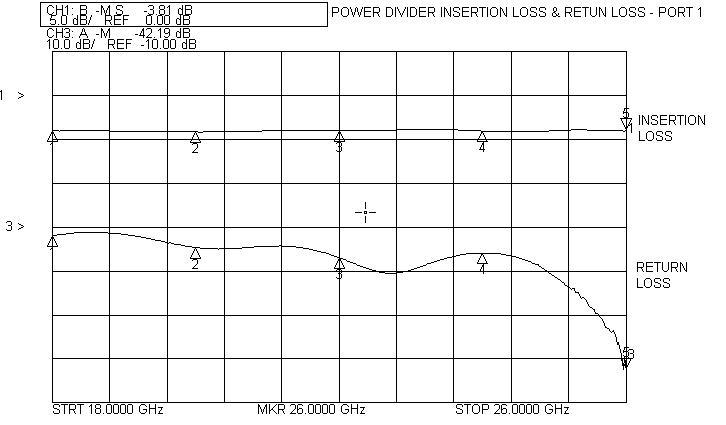

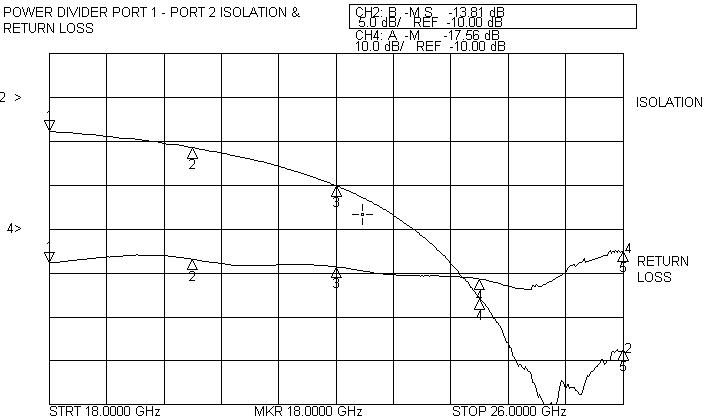

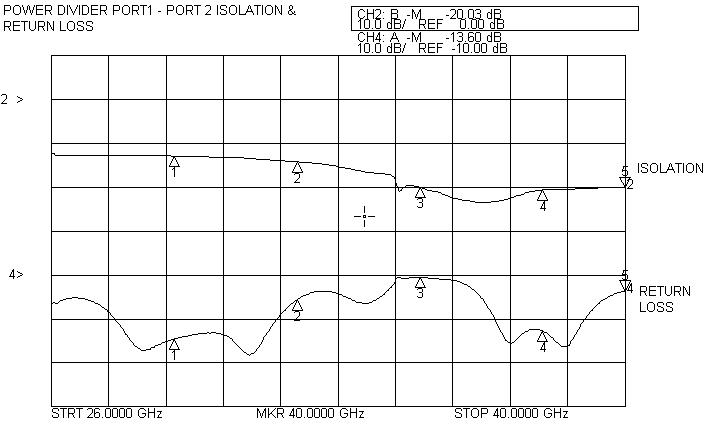

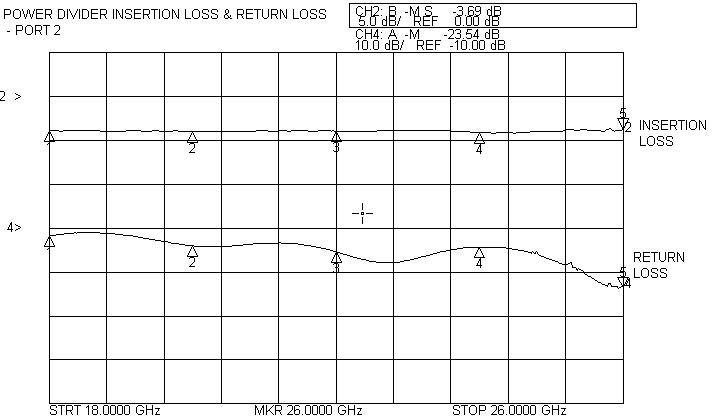

Akon ultra-compact Power Dividers operate over the 18 – 26 GHz and 26 – 40 GHz bands.  They provide low excess insertion loss and good port to port isolation.  Performance of actual units shown on the right.

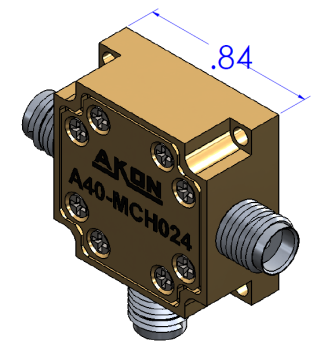

AKON re-defines "Compact"

0.28
Cubic Inches

EXAMPLES OF ACHIEVED PERFORMANCE

18 – 26 GHz

26 – 40 GHz

SOLID STATE SWITCHES

SPST to SP8T

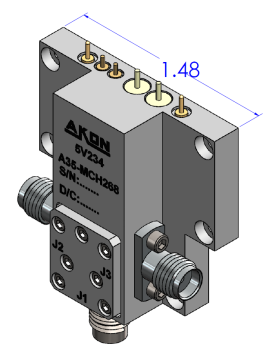

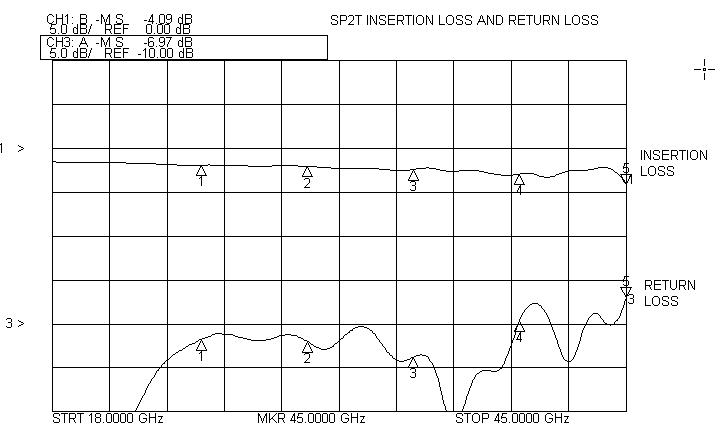

Switches are available SPST through SP8T with absorptive/reflective options, high isolation options, low insertion loss and good VSWR.  Switching speed is typically 100 ns or better.  Power handling is typically +23 dBm.  Switch products are full band.  Performance of actual units shown on the right.

EXAMPLES OF ACHIEVED PERFORMANCE

SP2T

MINIATURE SUBSTRATE FILTERS

Bandpass and Low Pass

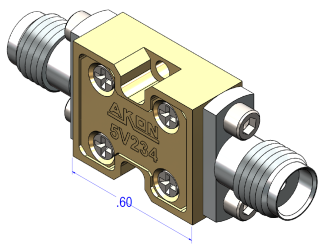

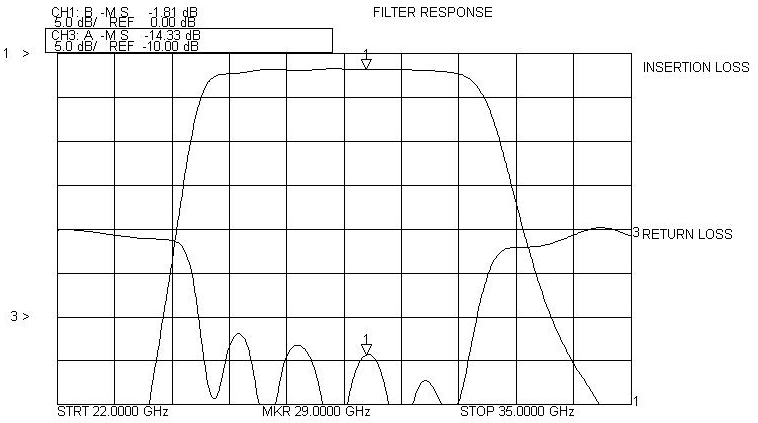

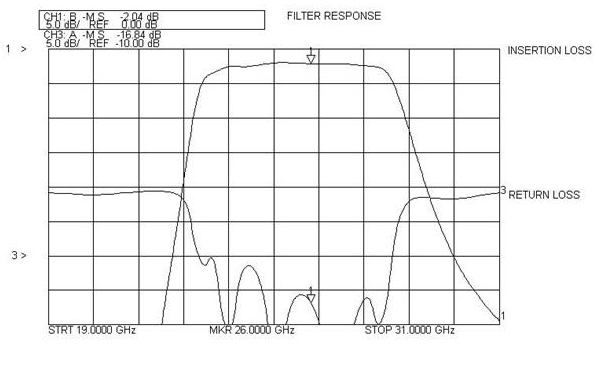

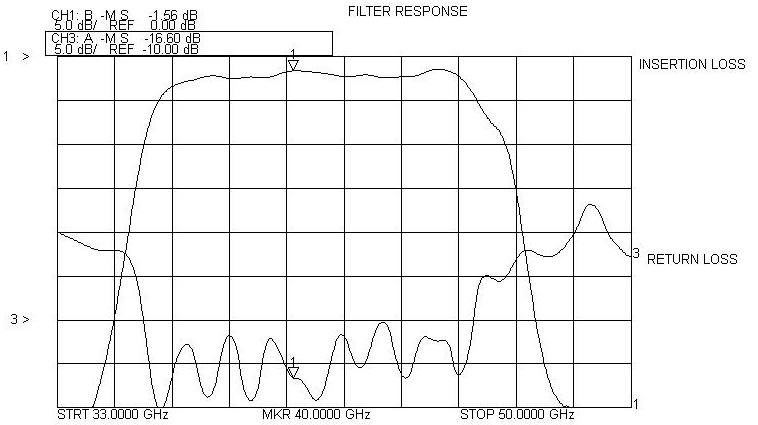

Akon ultra-compact millimeter substrate filters are printed on quartz or alumina substrates as appropriate for the frequency.  These filters typically offer 2 to 3 dB of passband loss and a minimum of 35 dB of stop-band rejection.  Rejection of 50 dB or more is available using a cascade configuration.  Filters are available with customer specified bands.  Performance of actual units shown on the right.

0.11
Cubic Inches

EXAMPLES OF ACHIEVED PERFORMANCE

26 GHz BPF

29 GHz BPF

30 GHz BPF

40.6 GHz BPF

COMPACT SWITCHED FILTER BANKS

2-Channel to 8-Channel

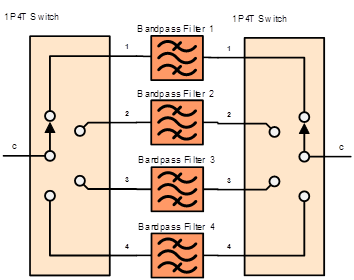

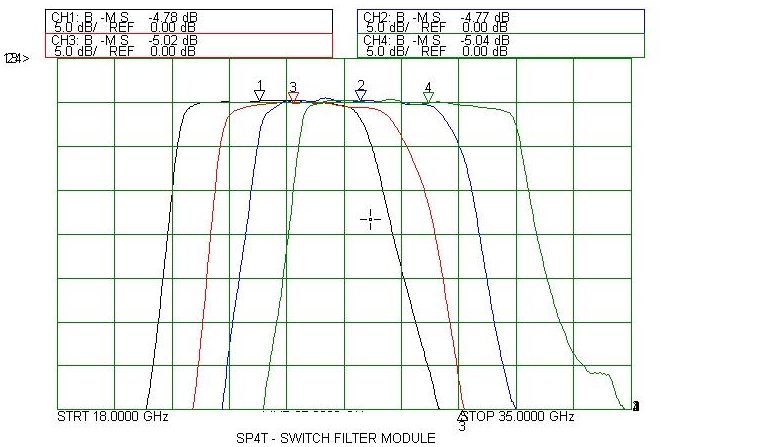

Akon millimeter band Switched Filter Banks are ultra-compact and are a marriage of our above described switching and filter technology, integrated into a single overall packaged IMA consisting of input and output multi-throw switches connected by the filter array as specified by the customer.  Amplification in the filter bank is available optionally.  Performance of actual units shown on the right.

1.42 x 1.0 x 0.5 Inches
0.71 Cubic Inches

18 – 35 GHz 4-Channel

24 – 50 GHz 4-Channel

FREQUENCY MULTIPLIERS

2x to 5x

Akon millimeter band active multipliers incorporate non-linear active devices, amplifiers and filtering to achieve a very stable and low added noise frequency multiplication to 50 GHz, with multiplication ratios of 2x to 5x.  Outputs are filtered to reduce unwanted harmonics and noise.  Performance of actual units shown on the right.

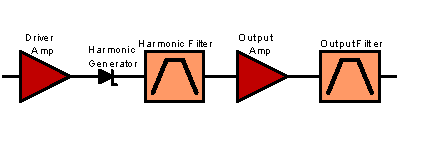

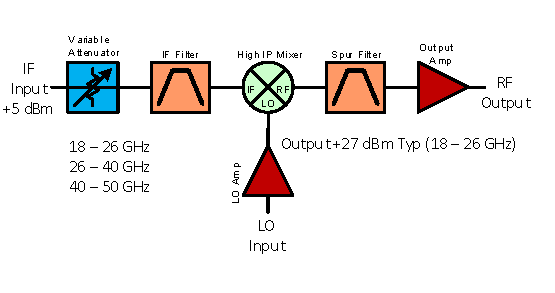

Typical Block Diagram

BLOCK UP and DOWN FREQUENCY CONVERTERS

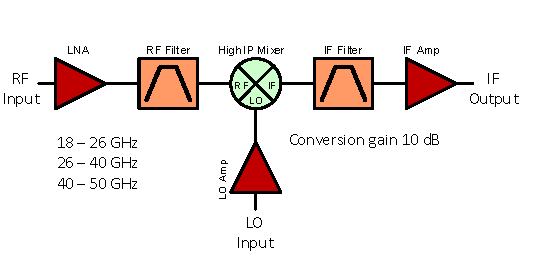

Akon millimeter band frequency conversion products operate up to 50 GHz.  They consist of low noise RF amplification, RF and IF filtering, a driver amplifier on the mixer LO port and a low noise IF amplifier. Converters can be single or double conversion, depending on RF/IF relationship.  Units feature low spurious mixing products and high linearity, and high image rejection.  Performance of actual units shown on the right

EXAMPLES OF ACHIEVED PERFORMANCE

Customer Program

JPL - MIRO (Complex Integrated Microwave Assembly)
JPL - MLS (complex Converter Assembly)
AEG - Germany FL-1800 (Electronic Counter Measure)
CSIST - Shipboard Radar Update
Raytheon - SLQ - 32
BAE/Sanders - USM - 406C (Test Set)
BAE/Sanders - USM - 464 (Test Set)
US Navy - SAR - Synthetic Aperture Radar TR Modules
NAVSEA/Envisioneering - SEAPORT-e Program (Tuners)
Lockheed Martin - AEGIS
SEARAM - Rolling Airframe Missile
Brazilian Navy
DSTO Australia
Anaren - Canadian F18
Ford - HARM Missile Seeker
ITT - ASPJ (Airborne Self Protect Jammer) IDECM (Integrated Digital Electronic Counter)
Japan - FSX, Several RWR (Radar Warning Receiver)
BAE/Loral - ALR - 56C (F15 Fighter) RWR
BAE/Loral - ALR - 56M (F16 Fighter) RWR
BAE/Loral - ALQ - 131 (Pod Mounted Jammer)
Turkish F-16 - Front End Converters SPEWS II
DRS - Euro Fighter Test Set
BAE/Loral - ALR - 56V - F15 (RWR Update)
Northrop Grumman - JSTARS
Northrop Grumman - ALQ - 188 (Electronic Attack Training Pod)
Raytheon - ALQ - 142 (LAMPS Helicopter)
Electronica (Italy)
Government of India - Aircraft Radar
DSTO (Australia)
