Gain Equalizers

Ruggedized Microwave Gain Equalizers

Features

    • Broad Frequency Coverage 2-18 GHz
    • Variety of Negative Gain Slopes
    • Low Ripple and VSWR
    • Compact and Ruggedized Packaging
    • Package Options: Drop-In, SMA/2.9mm & SMP

Description

AKON’s product line of Ruggedized Microwave Gain Equalizers operate over a frequency range of 2 to 18 GHz. All of the designs utilize thin-film passive and absorptive circuitry that results in excellent electrical performance and reliability over extreme temperature.

AKON products are designed to withstand the demanding environments of Military, Space and Industrial applications. Our compact and ruggedized products are designed to handle stringent mechanical shock/vibrations, temperature cycling, altitude and temperature extremes.

Reliability is a key feature of AKON products and to ensure this we perform ESS testing on all of our products.  AKON offers an off-the-shelf screening option called its “H“ series, per Mil-STD-883 level B that is available on all of its RF & Microwave Components. For custom electrical, mechanical, and screening options, please contact AKON Sales: sales@akoninc.com (or) 408-432-8039.

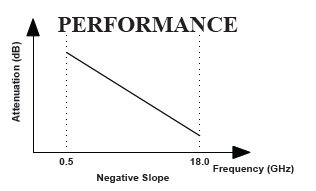

SPECIFICATIONS
Model Number Frequency (GHz) Insertion Loss (dB) @ 2 GHz Insertion Loss (dB) @ 18 GHz Ripple +/- (dB) Slope dB/GHz VSWR Power Handling (dBm) Pkg. EAR99/ ITAR Select Product
GEX-2018-N1 2-18 7 3 +/- 0.75 0.25 2.0:1 30 D, C, S EAR99
GEX-2018-N2 2-18 6.5 3 +/- 0.75 0.22 2.0:1 30 D, C, S EAR99
GEX-2018-N3 2-18 6 3 +/- 0.75 0.19 2.0:1 30 D, C, S EAR99
GEX-2018-N4 2-18 5.5 2.5 +/- 0.50 0.19 2.0:1 30 D, C, S EAR99
GEX-2018-N5 2-18 5 2.5 +/- 0.50 0.16 2.0:1 30 D, C, S EAR99
GEX-2018-N6 2-18 4.5 2 +/- 0.50 0.16 2.0:1 30 D, C, S EAR99
GEX-2018-N7 2-18 14 4 +/- 1.0 0.625 2.0:1 30 D, C, S EAR99
Note: You can select different models and submit inquiry or custom quote request with help of different options available at bottom of page.
