Filter Banks and Switch Filter Banks

Switch Filter Bank 6.0 - 18.0 GHz

Features

    • 8 CHANNELS
    • MMIC SWITCH DESIGN
    • SHARP FILTER REJECTION:
    • 60 dBc; 15% FROM BAND EDGES
    • HIGH SWITCH ISOLATION: 62 dB

Description

AKON s a leading manufacturer of RF/microwave components and subsystems for military, space and commercial applications. AKON’s product line includes high reliability, custom integrated microwave assemblies, DFD receivers, microwave receiver front-ends, RF switching matrices, frequency synthesizers, custom LO assemblies, frequency converters, RF switches, digitally controlled attenuators, miniature RF filters and switches, and microwave amplifiers covering 0.5 - 18.0 GHz frequency range (up to 40.0 GHz for some applications). AKON is qualified to MIL-I-45208 Quality System Requirements by agencies of the U.S. Department of Defense and by leading foreign and domestic military OEMs. All specifications are valid over the full operating temperature unless otherwise indicated.

AKON’s modular design approacht to its switch filter banks results in multichannel configurations, from 2 to 36 and up, which feature low profile packaging, high channel to channel isolation. AKON can design a custom switch filter bank to meet the most demanding electrical, mechanical, and environmental specifications.

Model Number A20-MH126
Frequency Range(GHz) 6.0 -18.0

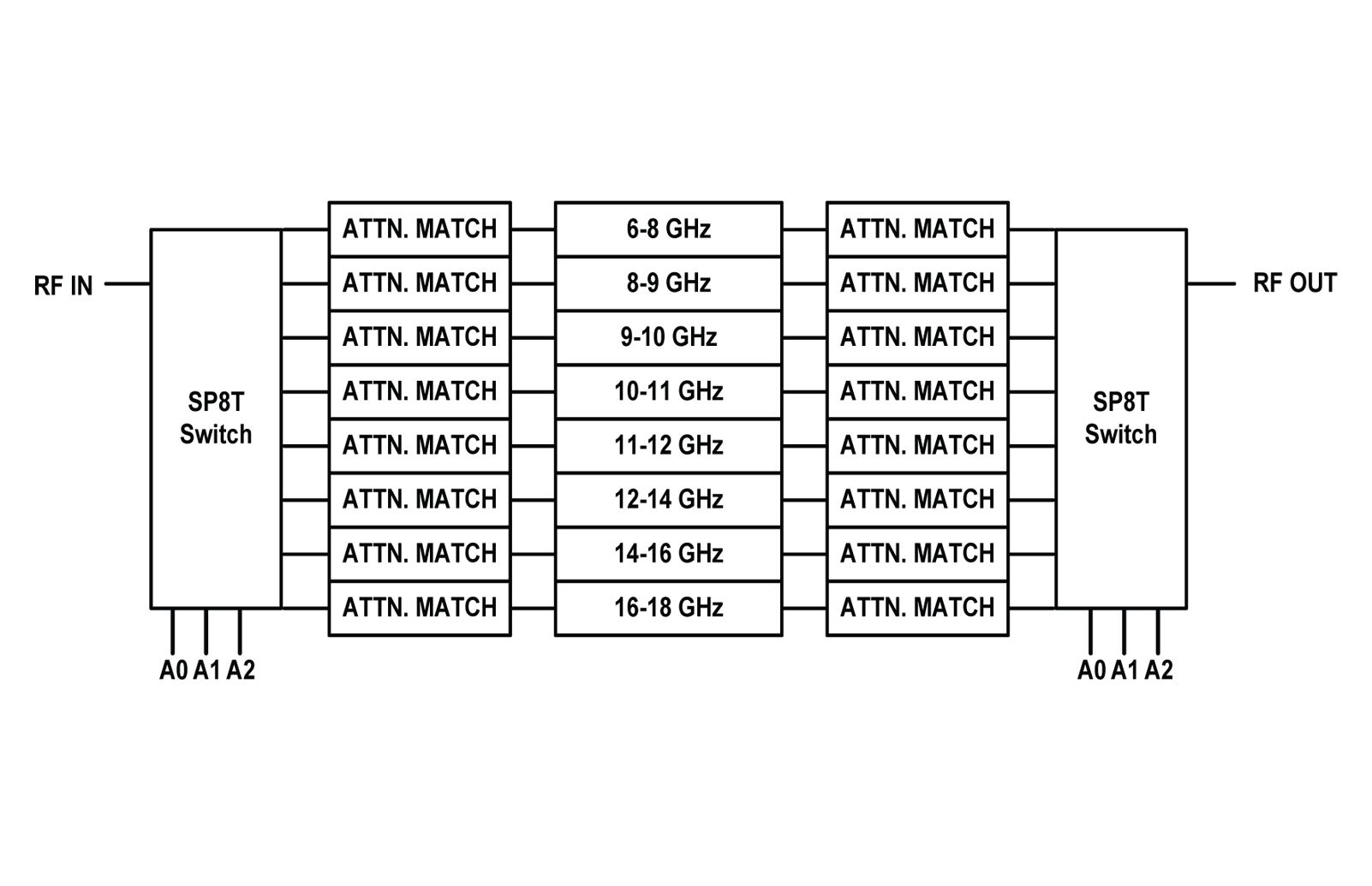

Channels(GHz) 6.0 - 8.0
8.0 - 9.0
9.0 - 10.0
10.0 - 11.0
11.0 - 12.0
12.0 - 14.0
14.0 - 16.0
16.0 - 18.0
Isolation (dB) 60
Filter Rejection(dBc) -60 (15% for band edges)
Insertion Loss (dB) 8.0 (nom)
9.0 (max)
Power Handling (dBm) Up to +15
Switching Speed (nS) 100 (max)
Power Supply(VDC) +/- 12 or +/- 15
Size(Inches) 3.91” x 3.71 x 0.55”
Channel Selection Control 3 TTL Lines
Select Product
Note: You can select different models and submit inquiry or custom quote request with help of different options available at bottom of page.

Customer Program

JPL - MIRO (Complex Integrated Microwave Assembly)
JPL - MLS (complex Converter Assembly)
AEG - Germany FL-1800 (Electronic Counter Measure)
CSIST - Shipboard Radar Update
Raytheon - SLQ - 32
BAE/Sanders - USM - 406C (Test Set)
BAE/Sanders - USM - 464 (Test Set)
US Navy - SAR - Synthetic Aperture Radar TR Modules
NAVSEA/Envisioneering - SEAPORT-e Program (Tuners)
Lockheed Martin - AEGIS
SEARAM - Rolling Airframe Missile
Brazilian Navy
DSTO Australia
Anaren - Canadian F18
Ford - HARM Missile Seeker
ITT - ASPJ (Airborne Self Protect Jammer) IDECM (Integrated Digital Electronic Counter)
Japan - FSX, Several RWR (Radar Warning Receiver)
BAE/Loral - ALR - 56C (F15 Fighter) RWR
BAE/Loral - ALR - 56M (F16 Fighter) RWR
BAE/Loral - ALQ - 131 (Pod Mounted Jammer)
Turkish F-16 - Front End Converters SPEWS II
DRS - Euro Fighter Test Set
BAE/Loral - ALR - 56V - F15 (RWR Update)
Northrop Grumman - JSTARS
Northrop Grumman - ALQ - 188 (Electronic Attack Training Pod)
Raytheon - ALQ - 142 (LAMPS Helicopter)
Electronica (Italy)
Government of India - Aircraft Radar
DSTO (Australia)
