Filter Banks and Switch Filter Banks

6 - 18 GHz Switch Filter Bank

Features

    • EXTREMELY COMPACT SIZE
    • 6 - 18 GHZ FREQUENCY RANGE
    • 8 CHANNELS
    • MMIC SWITCH DESIGN
    • SHARP FILTER REJECTION
    • HIGH ISOLATION
    • 100 NS (NOM) SWITCHING SPEED

Description

AKON produces miniature filterbanks and switch filter banks in the 2.0 - 18.0GHz range. Filters, amplifiers, attenuators,and equalizers are put together using MMIC techniques. Filter designs vary from lumped element to cavity or suspended substratetype, depending upon the requirements. Switches are taken from AKON’s comprehensive product line of RF/microwave solid-state switches incorporating both PIN-diode and MMIC switching technologies.  Multiple switches in a common package are phase and gain matched.  AKON’s switch speed is typically 50 nS or less, amongst the lowest loss in the industry. The units can be tailored for specific customer requirements.

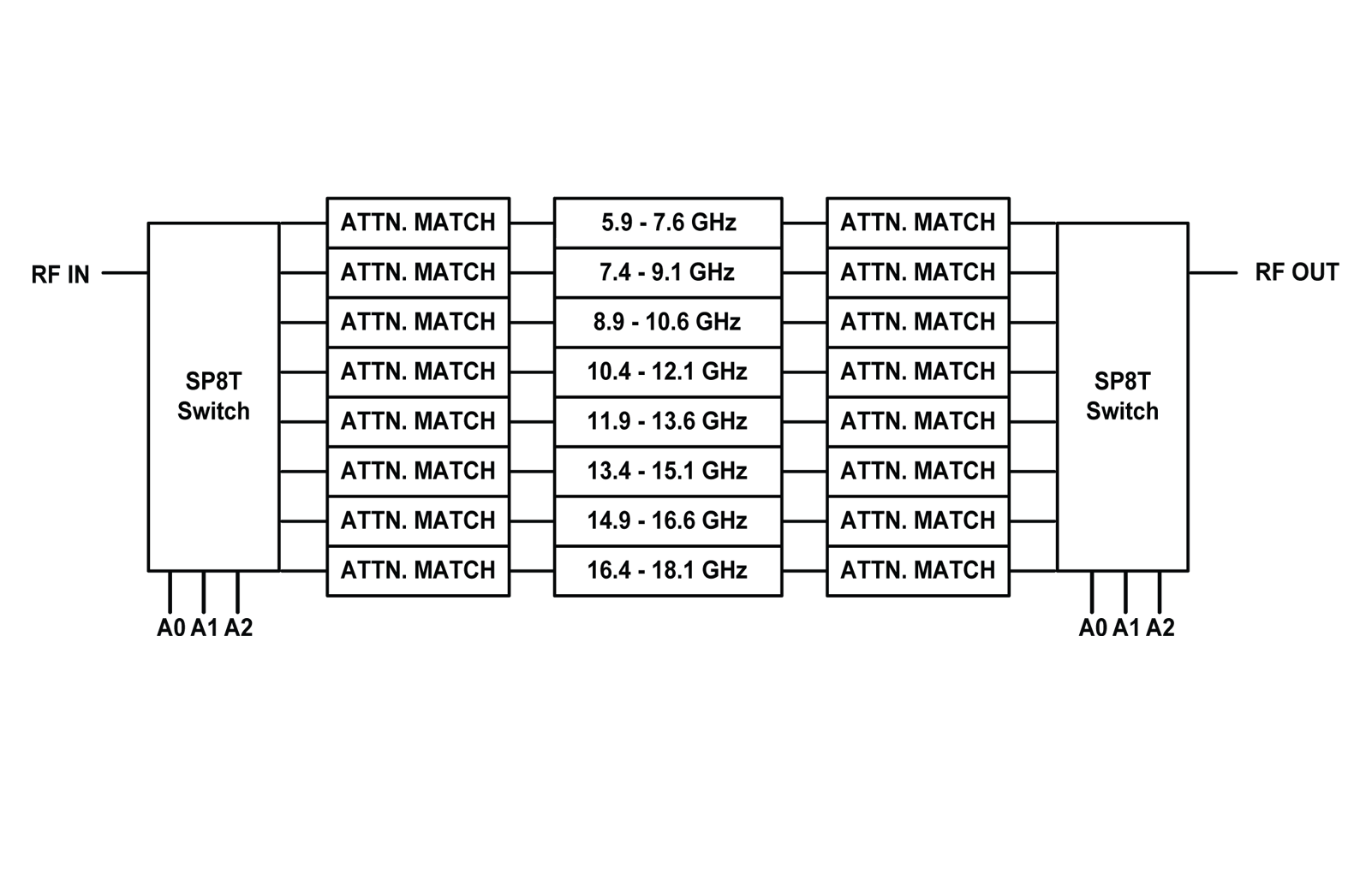

Model Number A20-MH211
Frequency Range(GHz) 5.9 to 18.1
Channels(GHz) 8 Total:
CH1: 5.9 - 7.6
CH2: 7.4 - 9.1
CH3: 8.9 - 10.6
CH4: 10.4 - 12.1
CH5: 11.9 - 13.6
CH6: 13.4 - 15.1
CH7: 14.9 - 16.6
CH8: 16.4 - 18.1
Power Supply(VDC) +8 and -15
Frequency Flatness(dB) +/- 1.0 (typ)
+/- 1.25 (max)
Insertion Loss (dB) 9.0 over 95% of band, 9.7 (max)
Switching Speed (nS) 100
Stop Band (dB) -80
Isolation (dB) -80
Input Level (dBm) +20 (max)
Spurious (dBc) -60 (max)
Harmonics (dBc) (in band) -60 (max)
VSWR 2.0:1 95 % of band, 2.5:1 (max)
Channel Selection Control 3 TTL Compatible Lines
