High Speed SDLVAs

Features

    • 0.5 - 18 GHz Frequency Coverage
    • 10 nS Rise Time
    • 60 nS Recovery Time
    • Excellent Log Linearity
    • Flat Frequency Response
    • EAR 99 Export Classification

Description

AKON has developed a new series of DLVAs operating over a frequency range of 0.5 to 18 GHz in a variety of bands. This new series offers 70 dB dynamic logging range with linearity of +/-1 dB over this range.

AKON products are designed to withstand the demanding environments of Military, Space and Industrial applications. Our compact and ruggedized products are designed to handle stringent mechanical shock/vibrations, temperature cycling, altitude and temperature extremes.

Reliability is a key feature of AKON products and to ensure this we perform ESS testing on all of our products. AKON offers an off-the-shelf screening option called its “H“ series, per Mil-STD-883 level B that is available on all of its RF & Microwave Components. For custom electrical, mechanical, and screening options, please contact AKON Sales: sales@akoninc.com (or) 408-432-8039.

Model Number A15-MH226 A15-MH227 A15-MH228 A15-MH225
Frequency Range(GHz) 0.5-2 2-6 6-18 2-18
T.S.S(dBm) -73 -73 -73 -73
Logging Range (dBm) -70 to 0 -70 to 0 -70 to 0 -70 to 0
Frequency Flatness(dB) +/- 1.5 +/- 1.5 +/- 2.0 +/- 3.0
VSWR 2.0:1 2.0:1 2.0:1 2.0:1
Log Linearity (dB) +/- 1.0 +/- 1.0 +/- 1.0 +/- 1.0
Log Accuracy (dB) (over termperature at a given frequency) +/- 2.5 +/- 2.5 +/- 3 +/- 3
Log Slope (mV/dB) For Linerity Measurement 25 25 25 25
Rise Time (nS) 10 10 10 10
Recovery Time (nS) (90% to +/- 1.0 dB of Baseline) 60 60 60 60
Propagation Delay (nS) (50% RF to 10% Video) 10 10 10 10
Power Supply Current (mA) +12 (VDC) 500 500 600 600
Power Supply Current (mA) -12 (VDC) 150 150 150 150
Coupling DC DC DC DC
Video Load (ohms) 93 +/- 1 93 +/- 1 93 +/- 1 93 +/- 1

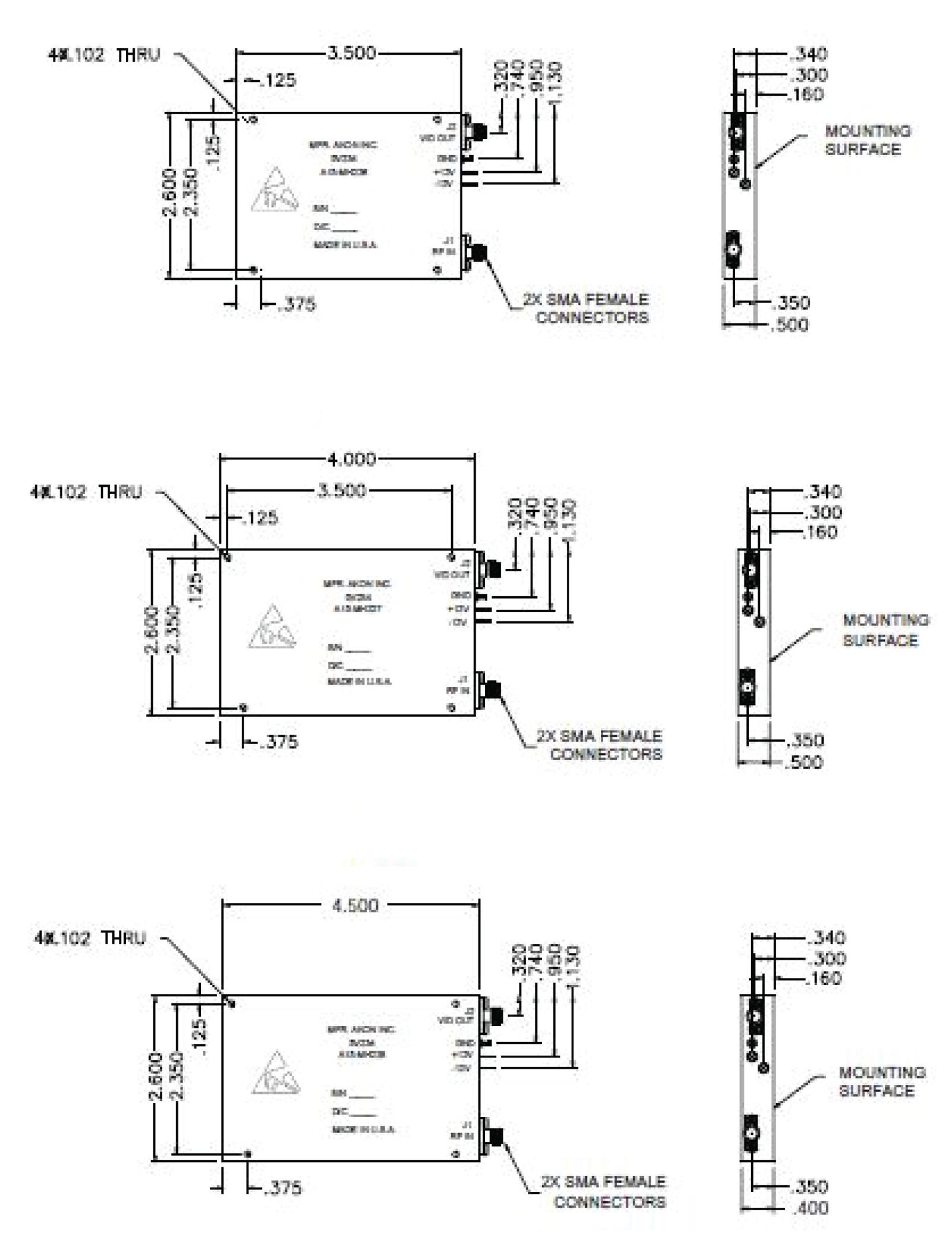

Size Figure 1 Figure 2 Figure 3 Figure 3
Operating Temperature (°C) -20 to +85 -20 to +85 -20 to +85 -20 to +85
Select Product
Note: You can select different models and submit inquiry or custom quote request with help of different options available at bottom of page.

AKON, Inc. and it’s affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
All products are measured in 50-ohm system, over a temperature Range of -20° to +85° C
